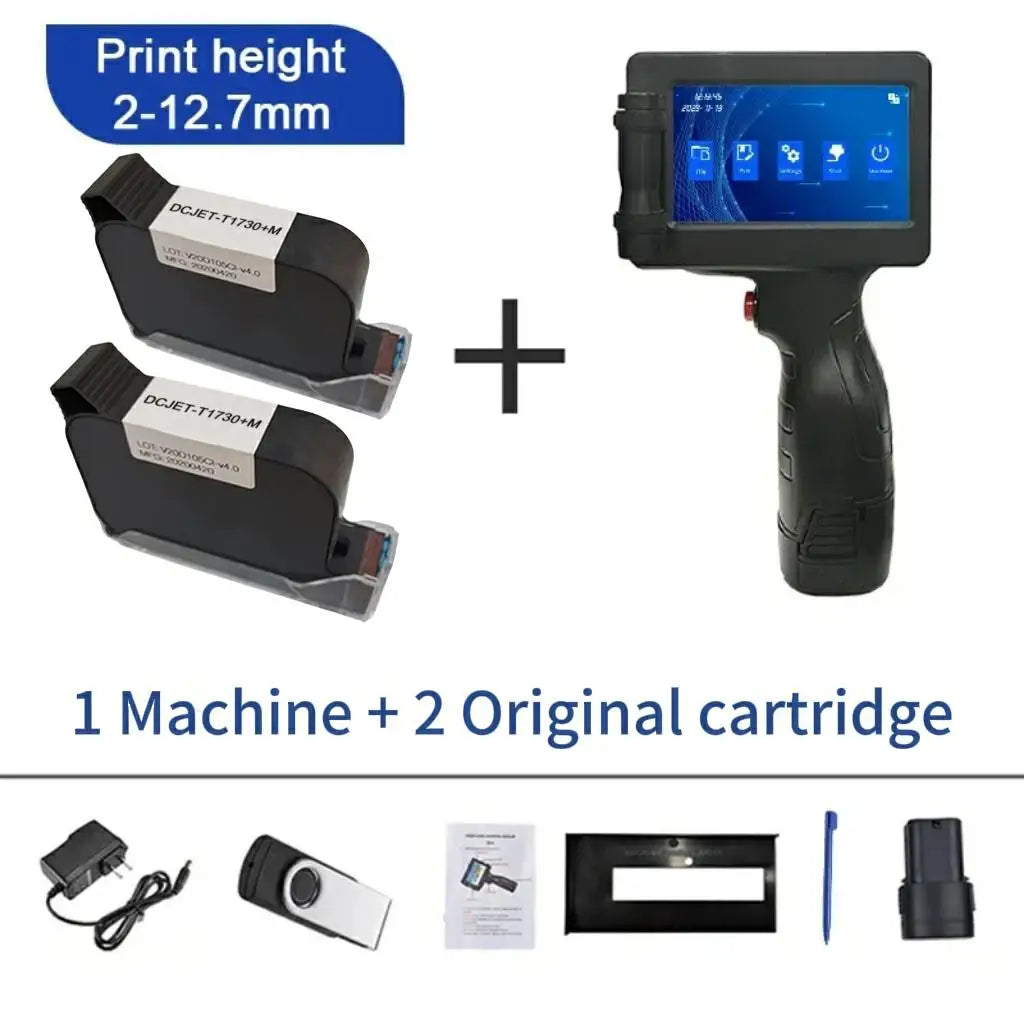

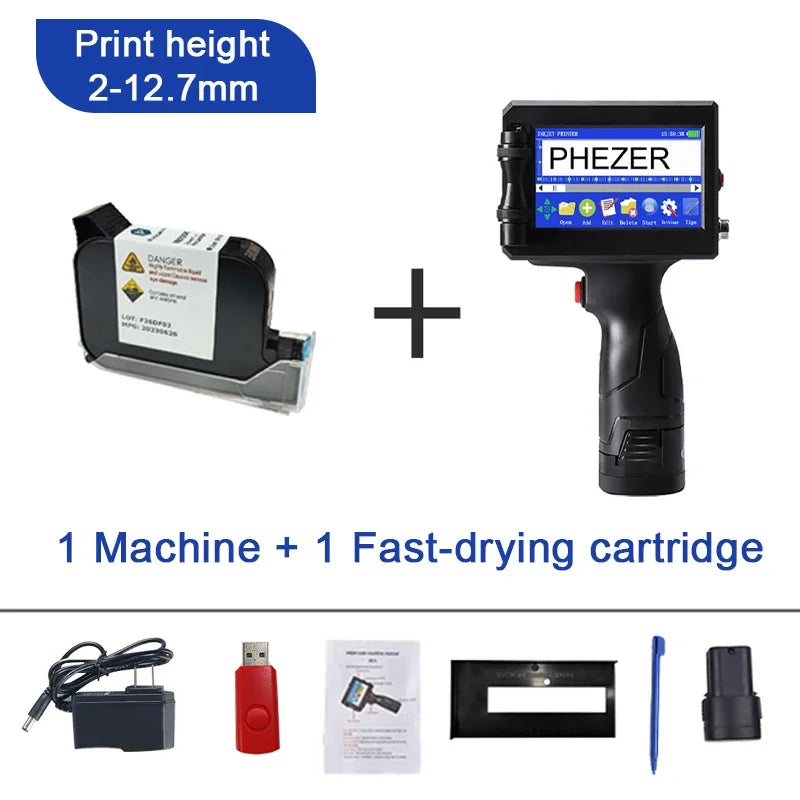

Phezer 12.7mm Label Printer Batch Code Date Number QR Bar Logo Expiry Date P15 Handheld Inkjet Printer 28 Languages Portable

Big advantage:

1: The machine is not encrypted, and the cost of ink cartridges is low. You can also buy cartridges

locally.

2: The printing height of this product is 12.7 mm, the printing efficiency is better, the speed is

faster, it is suitable for printing almost all materials such as carton, plastic bag, metal, etc., quick-

drying printing, not easy to fade

3: This machine supports 28 languages, and you can use U disk to import new fonts.

include:

1* Printer

1* Charger

1* Stylus Pen

1* Positioning metal plate

1* battery

1 * Ink (normal solvent quick drying) (delivered at the amount you pay)

1*English manual

Specification:

1,Print Head:Thermal inkjet 2.5

2,CPU:Quad core 1.4GHz

3,Operation System:Linux

4,Print Distance:Best quality with 2-5mm

5,lnterface:USB,Photocell

6,Print Resolution:600dpi Maximum

7,Weight:Gw 0.65KG

8,Dimension:225*135*110mm

9,Battery:2200mAh @ DC8.4v

10,Ink Type:Water-based/42ml,Solvent/42ml

11,Material of Printer:ABS+PC

12,Print Height:2-12.7mm

13,Language:Chinese, English, Japanese,Turkish,Arabic, Korean, Spanish, French, Italian and so

14,Adapter:AC input 110~240V; DC output 8.4V/2A

15,Ink Color:Black, White,Red, Yellow, Blue, Green, Invisible, UV

16,Print Content:Chinese,English, Numbers,Symbols, QR code, Bar code,Pictures, Dates,Counter

17,Print Media:Boards, Carton, Stone, Pipe,Cable, Metal, Plastic,Electronic,Automotive parts

18,Operational Environment:Temperature 0-45℃ (The best:20-30℃)Humidity 40%-60%Rh

Q & A

1.Q:How to better extend the life of the printer ?

A:Before installing and removing ink cartridges, be sure to turn off the printer.

2.Q:How to better protect the ink cartridge nozzle?

A:When not using ink cartridges, please close the protective cover in time.

Dip a soft paper towel with a small amount of alcohol before use, and then gently wipe the nozzle in one direction.

3.Q: Why does the printer screen not work?

A: When you find that the screen of the printer is not working, please calibrate the screen of the printer.For specific steps please check this link :

4.Q: Can the printer be equipped with photoelectric sensors?

A: Yes, our inkjet printer has an adapted photoelectric sensor. Please consult customer service before purchasing.

5.Q: Can the printer print on the bottle?

A: Yes, we will provide you with a metal positioning plate for free, For specific steps,please consult customer service .

6.Q: What should I do if the printer cannot print?

A: ①Check whether the timing belt on the left side of the printer is off (not in the groove).

②Check if there is ink in the ink cartridge.

③Switch the nozzle of the printer in the settings.

④ After turning off the printer, reinstall the ink cartridge.

7.Q: The ink cartridge of the printer can print, but the printing is not clear, what should I do?

A: ①Check whether the ink cartridge nozzle is clean and dry, and wipe the nozzle carefully with a clean soft tissue.

② Take out the ink cartridge when the printer is off, shake the nozzle down several times, and stick a clean paper towel on the surface of the nozzle to divert the ink in the box.

③Switch the nozzle of the printer in the settings.

④The above operation still cannot be solved, please replace the ink cartridge.

8.Q: What should I do when there is a printer phenomenon of wire drawing?

A: The ink cartridge is quick-drying. When there is a phenomenon of wire drawing, please wipe the nozzle carefully with a clean soft tissue and switch the nozzle of the printer.

When not using the ink cartridge, please install the cover in time.

9.Q: Can the printer be charged?

A: Yes. Note:

① Please remove the battery at the bottom of the printer and charge it separately to avoid damage to the printer.

②Please use our special charger to charge the printer.

③When the printer is stored for a long time and not in use, it is recommended to safely charge and discharge it every three months.
