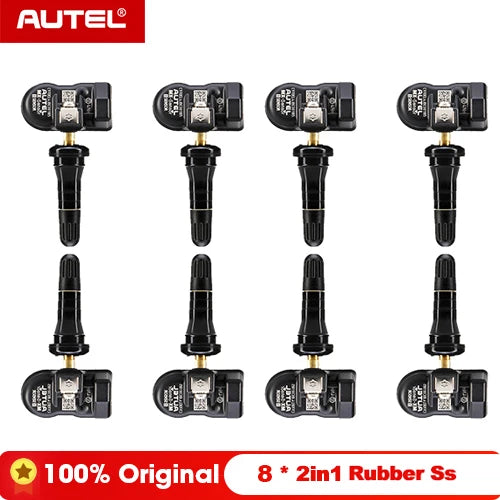

Autel TPMS Sensor MX-Sensor, 2in1 315MHz + 433MHz Dual Frequency Tire Replacement Sensor, OE-Level Programmable & Cloneable TPMS Pressure Sensor for All Vehicles

■ Introduction

Autel MX-Sensor 2 In 1 (315 + 433MHz), as a programmable universal sensor featuring in Clamp-in and Snap-in options which are both smart and efficient specially built for sensor replacement with maximum application coverage, ease of use, OE-level fit, performance and reliability, will help users economize the cost of diagnostic work and raise the repair efficiency greatly.

2023 Newest 4in1 Sensor: 315MHz & 433MHz

Q: What is difference between MX-sensor and other brand sensor?
A: Autel MX-sensor adopts 88E chips, which is an upgrade version of other sensors with old 87e chips, more stable and faster than old 87e chips sensor in the market.

Features of Autel MX-Sensors:

1. Solve tire pressure issues: According to the tire pressure and tire temperature data collected by the sensor, real-time monitoring of tire running
2. Wireless programming at once: MX-sensors can be programmed by Autel TPMS scan tool
3. Maximum Signal Strength: Maximum sensor signal strength to program up to 16 sensors wirelessly including sensors already mounted on the wheel.
4. 100% ID Clone Accurately/No relearned needed: No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.
5. Fast to be relearned: Sensors can be fast relearned by TPMS scan tool, No restrictions on brands
6. Dual 4in1 Frequency 315MHz & 433 MHz: 4in1 sensor can replace 99% sensors in the market, 1-SKU can reduce inventory investment and storage pressure
7. 98% Vehicle Coverage: Supports 98% vehicles in the road
Tested & certified to meet SAE standards: Autel ensures MX-Sensor are free from manufacturing defects for a period of 24 months or 24,000 miles, whichever option comes first.

Work with All Autel TPMS Scanner

Autel MX-sensor can work with Autel TPMS Scan Tool and other scanners

Work with Autel TPMS Scan Tool:

Autel MX-sensor can work with MS906 Pro-TS, MK906 Pro-TS, MS906TS, MP808TS, MK808TS, TS608, TS601, TS508, TS501, ITS600, etc. to perform program, activate, relearn etc.
MX-sensor only can be programmed by Autel Scanner, other brands scan tool can't program Autel MX-sensor.

Work with Other Scan Tool:

Autel MX-sensor can also work with other brands to perform sensor relearn and activeate, but please be noted can't be programmed by other brands scanner.

Easy Installation Steps

Step 1: Loosening the tire

Remove the valve cap and core and deflflate the tire. Use the bead loosener to unseat the tire bead

Step 2: Dismounting the tire

Clamp the tire onto the tire changer, and adjust the valve at 1 o'clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to dismount the bead.

Step 3: Dismounting the sensor

Depress the Press button on the sensor body, carefully pull the sensor body straight back off the valve. Cut the rubber bulb and attach a standard TTV tool to the valve. Remove the valve from the rim by pulling through the rim.

Step 4: Mounting sensor and valve:

1. Apply tire soap or lube solution to the rubber valve stem.
2. Line the sensor up with rim hole and attach a standard TTV pull in tool to the end of the valve.
3. Pull the valve stem straight through the valve hole. Note the rubber bulb of the valve resting against the rim, then assemble the cap back on the stem.

Step 5: Mounting the tire

Place the tire on the rim, make sure that the valve faces the separation head at an angle of 180° . Mount the tire over the rim.

98% Vehicle Coverage & 4in1 MX-sensor

1.Autel sensors support 98% of North American, European and Asian vehicles, cover almost all OE sensors on the market, and provide vehicle coverage for the latest models.

2. Only 1SKU 2-in-1 sensor is required to service almost every TPMS-equipped vehicle to reduce maintenance costs and increase installation efficiency without relearning.

3. The MX-Sensor can be cloned with 100% of the original sensor ID and placed in the same location.

Specific Parameter:

Battery Life: 4-6 years;
Operating Frequency: 315&433 MHz;
Pressure Monitoring Range: 0 to 800 kPa;
Operating Humidity: ≤90%;
Temperature Reading Range: -40°C to +125°C; Transmission Power: 5-8 dBm; Battery: 3.0 V.

■ Notice

1. The TPMS sensor assemblies are replacement or maintenance parts for vehicles that have a factory installed TPMS.
2. Make sure to program the sensor by AUTEL sensor programming tools for your specific vehicle make, model and year before installation.
3. Do not install programmed TPMS sensor in damaged wheels.
4. In order to guarantee optimal function, the sensor may only be installed with original valves and accessories provided by Autel.
5. Upon completion of installation, test the vehicle TPMS systems using procedures described in the original manufacturer' s user guide to confirm proper installation.
6. Each time a tire is serviced or dismounted, or if the sensor is removed or replaced, it is mandatory to replace the rubber grommet, washer, nut and valve core with our parts to ensure proper sealing. It is mandatory to replace the sensor if it is extremely damaged.
