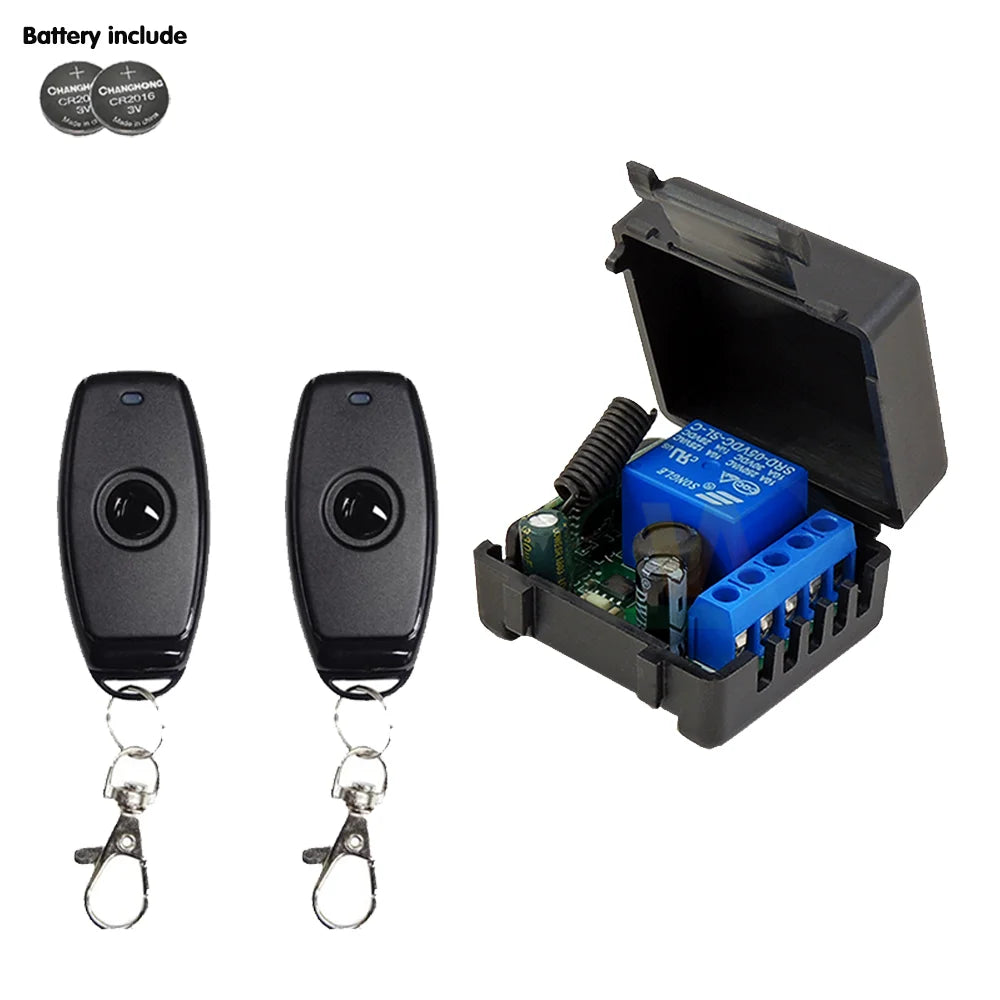

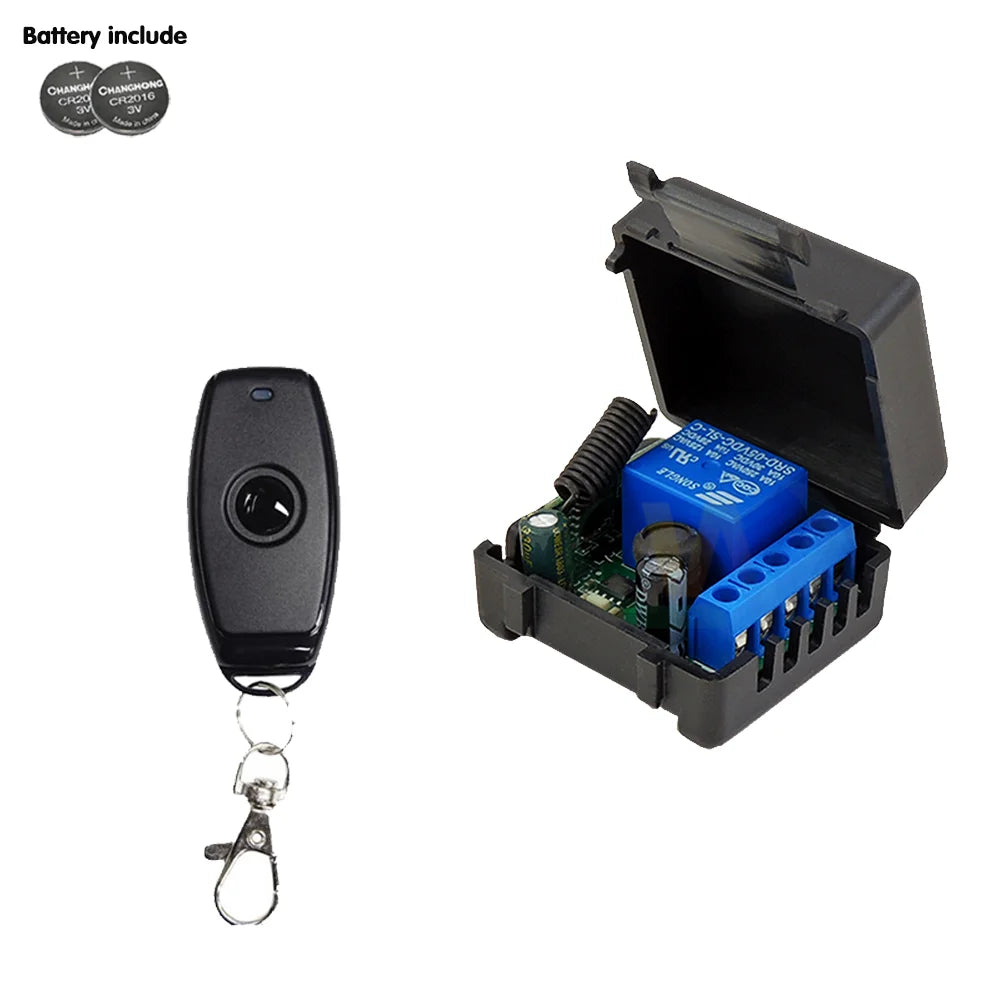

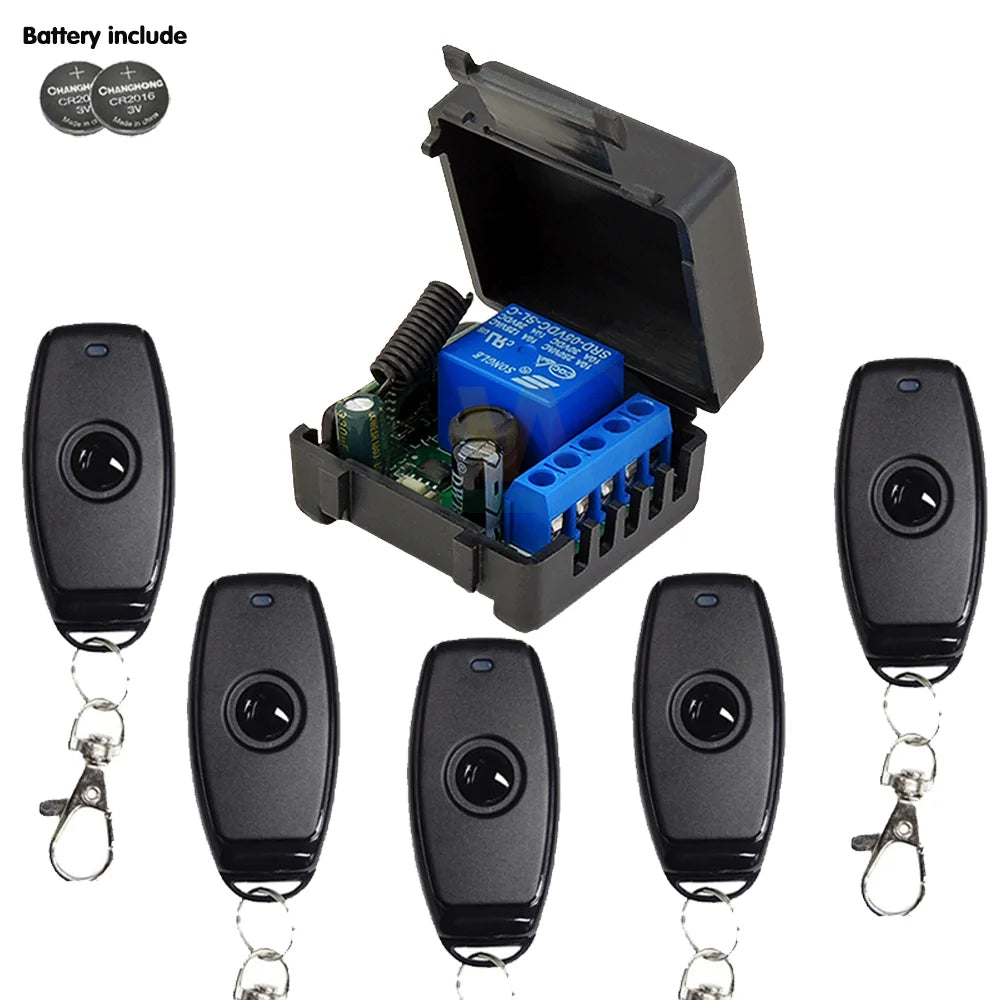

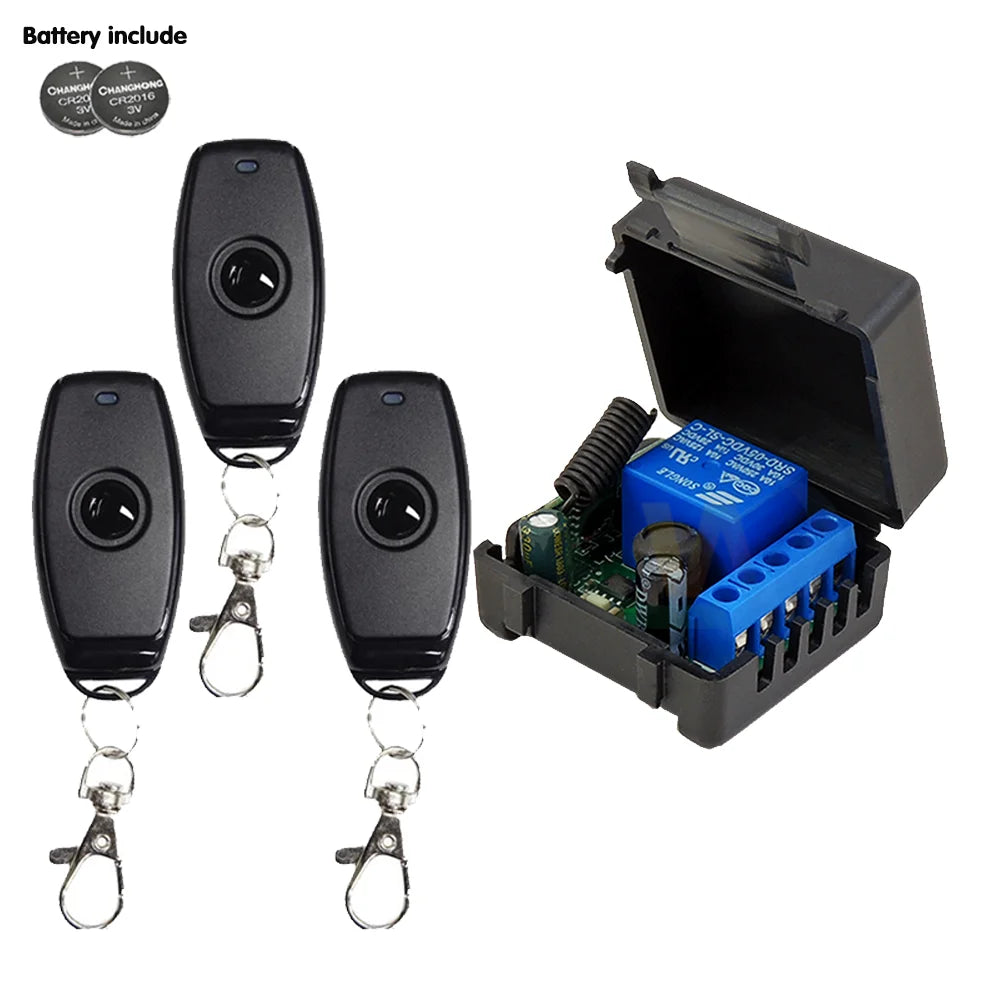

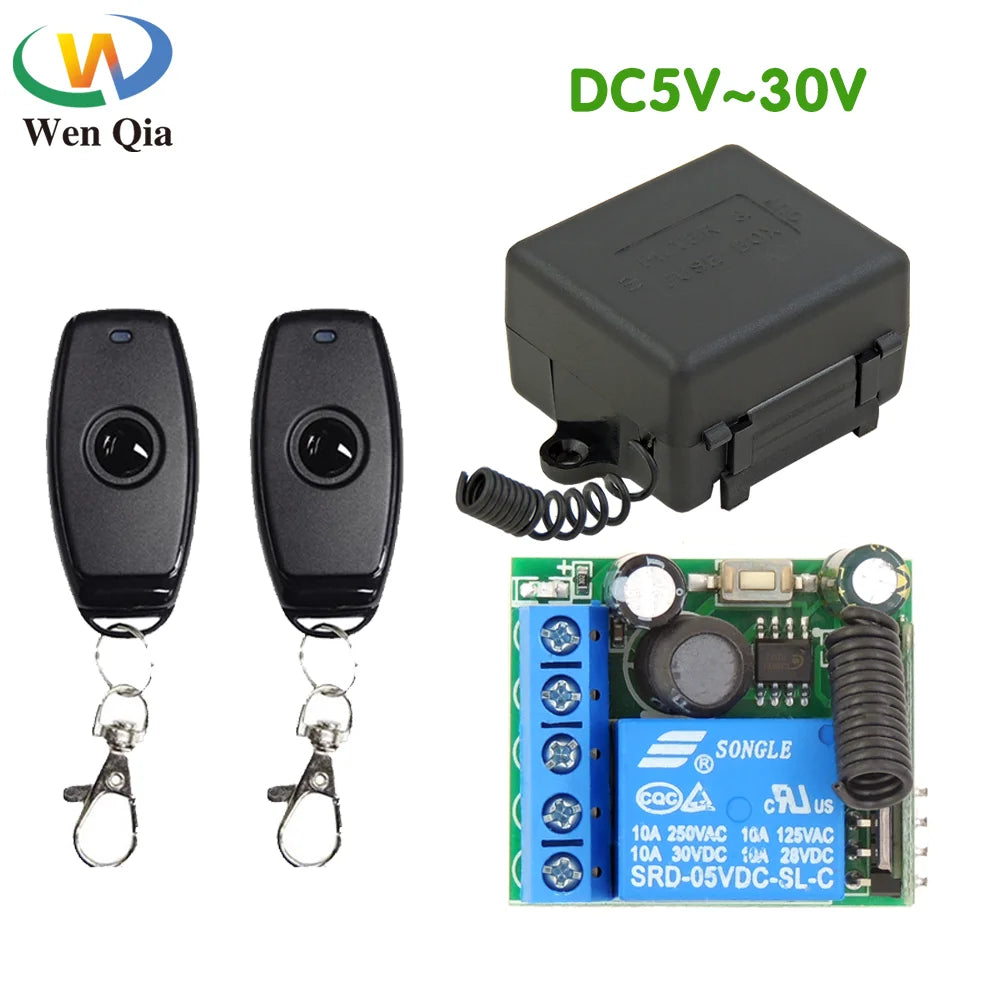

433Mhz Wireless RF Remote Control Switch Transmitter DC12V 24V 30V 1Channel Relay Receiver Module For Electronic locks/Light/Led

Relay Receiver Board Parameter

• Working voltage  :  DC 5V~30V

• Input/Output vlotage  :  1~250V

• Quiescent Current  :  <5MA

• Max current  :  10A

• Max load: 300W

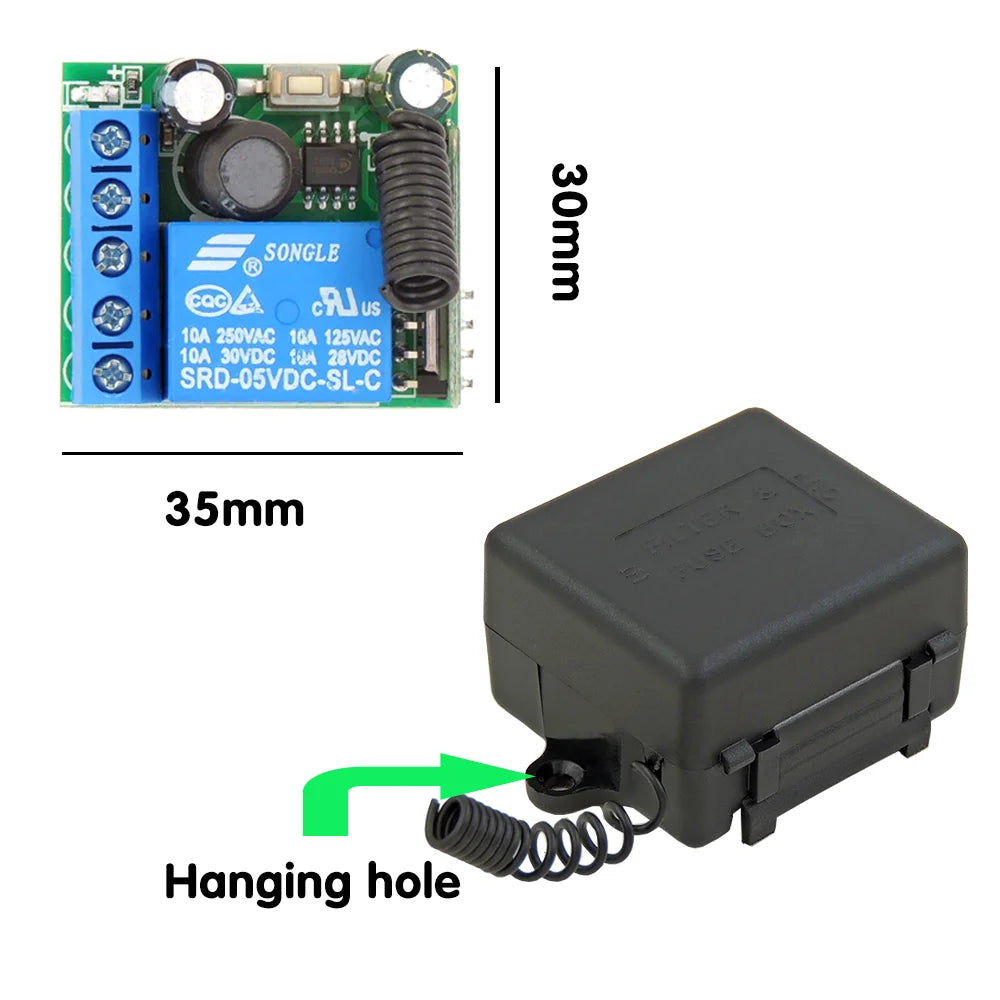

• Circuit Board Size: 3.5*3.0*1.8cm(1.37*1.18*0.7in)

• Receiving range:more than 50ms(on open space)

• RF frequency  :  433MHz

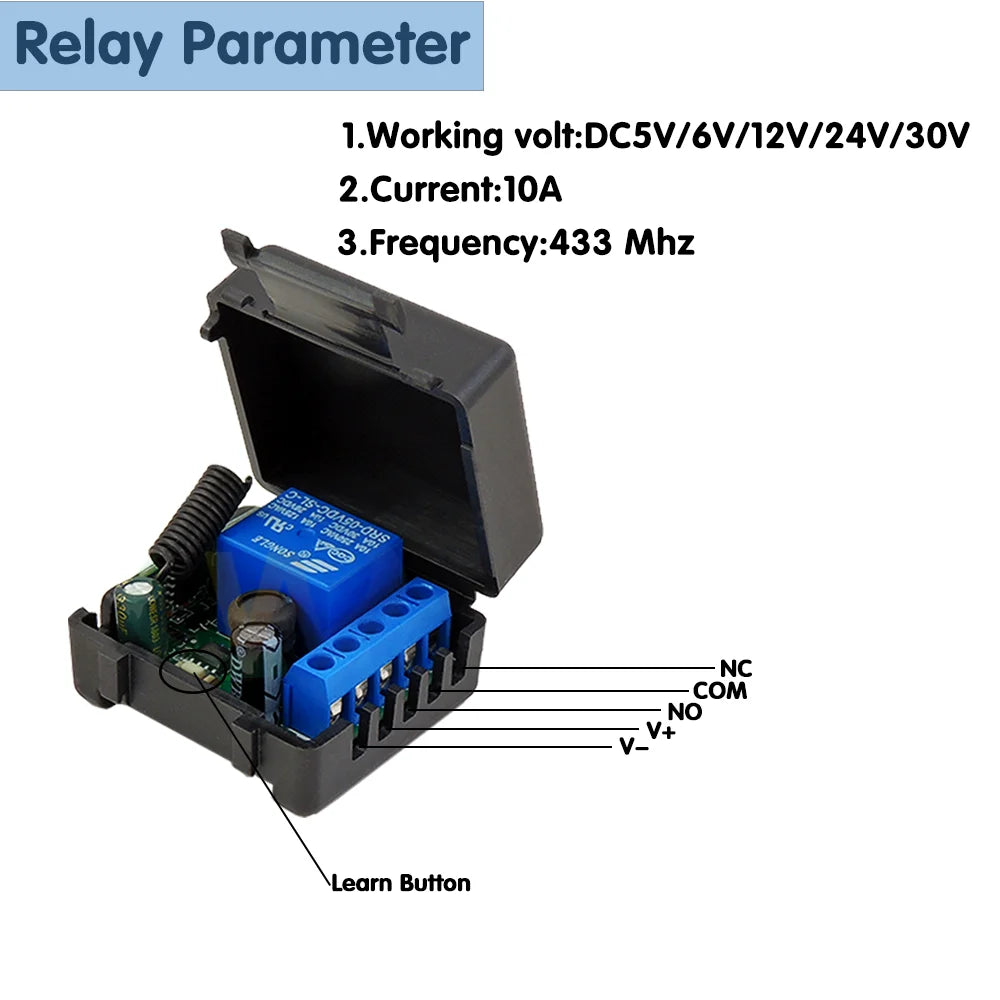

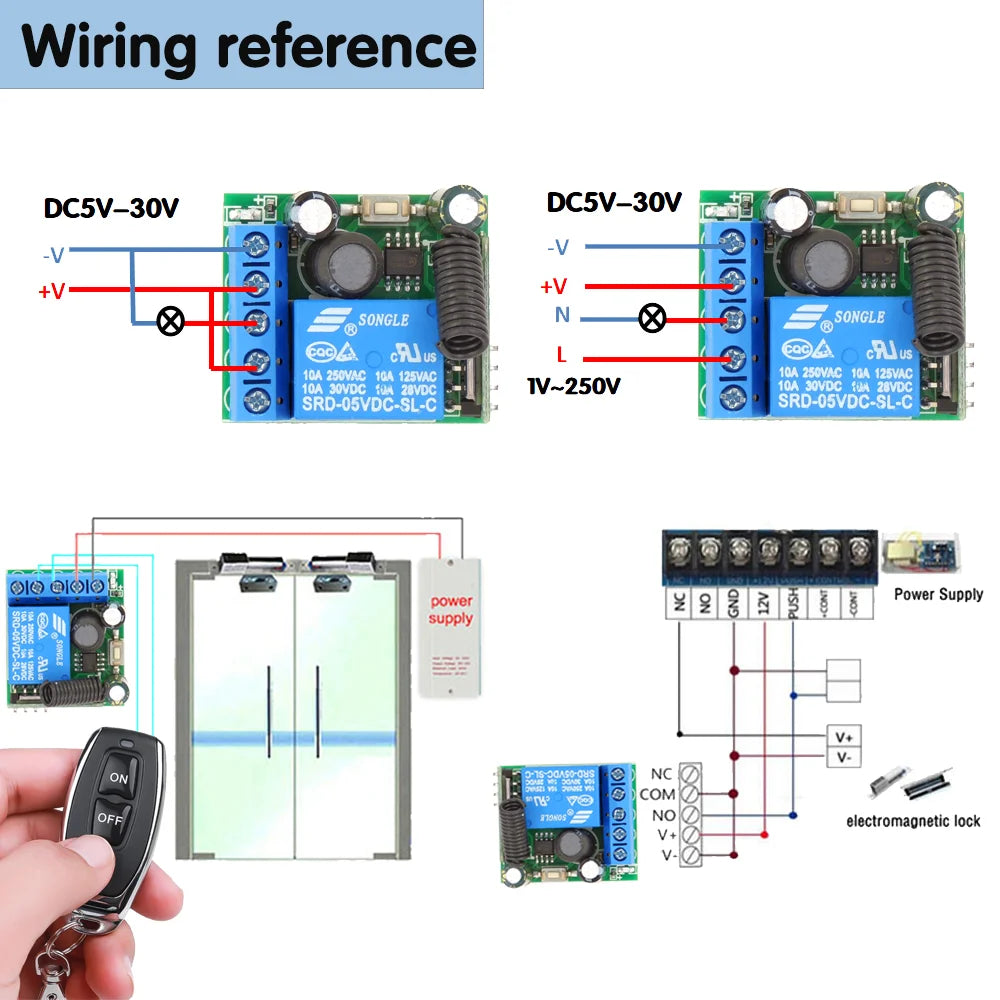

• Pin  :  NO / COM / NC

• Working temperature  : -30~+80 degrees

• Receiving Sensitivity  :  >97dbm

• Amount of storage remote controls  :  20 pieces

• Support encoding  :  1527 Learning code /2262 fixed code

• RF Operating mode  :  ASK superheterodyne wireless reception

• Remote operating mode   : Momentary Mode / Toggle Mode / Latched Mode / Time Delay Mode

Working Modes: 4 modes
Momentary mode,Toggle mode,Latched mode and Time delay mode

Momentary mode: Press and hold A button, will work;Release A button,will stop.
Toggle mode: Press A button,will work;press A button again,will stop;
Press B button,will work;press B button again,will stop.
Latched mode: Press A button,will work;Press B button again,will stop.
Time delay mode:  Press and hold on button "A" , turn on;
Release the button, turn off after 5 seconds(or 10/15 seconds )

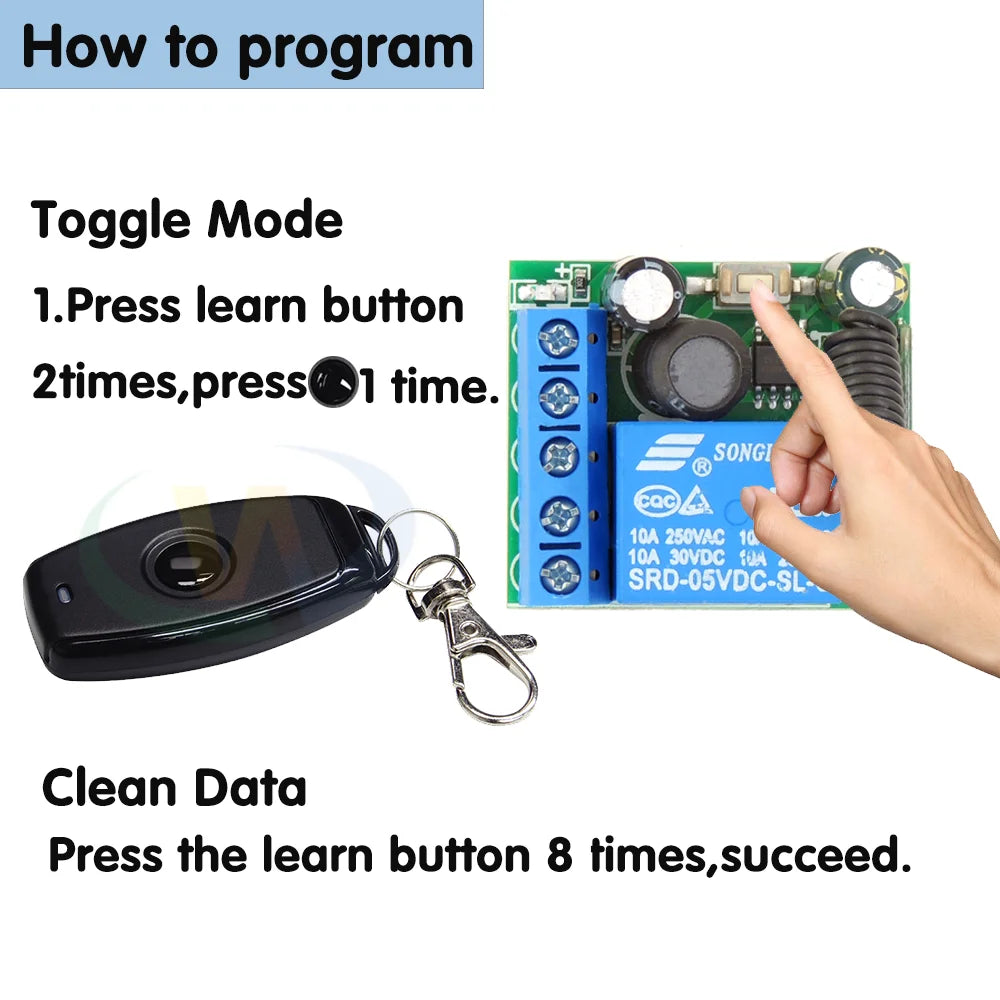

How to program
Momentary mode: Press learning button once,press A button once,succeed.
Toggle mode: Press learning button twice,press A button once,Press B button,succeed.
Latched mode: Press learning button 3times,press A button once;press the B button once.succeed.
Time delay mode: Press learning button 4/5/6 times,press A button once,succeed.

Reset:
Press the learning button 8 times. The existing data will be deleted succeed.
